Product Summary
The LT1371CR is a monolithic high frequency current mode switching regulator. It can be operated in all standard switching configurations including boost, buck, flyback, forward, inverting and Cuk A 3A high efficiency switch is included on the die, along with all oscillator, control and protection circuitry. The LT1371CR typically consumes only 4mA quiescent current and has higher efficiency than previous parts. High frequency switching allows for very small inductors to be used.
Parametrics
LT1371CR absolute maximum ratings: (1)Supply Voltage: 30V; (2)Switch Voltage: 35V; (3)S/S, SHDN, SYNC Pin Voltage: 30V; (4)Feedback Pin Voltage (Transient, 10ms): ±10V; (5)Feedback Pin Current: 10mA; (6)Negative Feedback Pin Voltage: ±10V; (7)Operating Ambient Temperature Range: 0℃ to 70℃; (8)Operating Junction Temperature Range: Commercial: 0℃ to 125℃; Industrial: –40℃ to 125℃; Short Circuit: 0℃ to 150℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1371CR features: (1)Faster Switching with Increased Efficiency; (2)Uses Small Inductors: 4.7mH; (3)All Surface Mount Components; (4)Low Minimum Supply Voltage: 2.7V; (5)Quiescent Current: 4mA Typ; (6)Current Limited Power Switch: 3A; (7)Regulates Positive or Negative Outputs; (8)ShutdowSupply Current: 12mA Typ; (9)Easy External Synchronization.

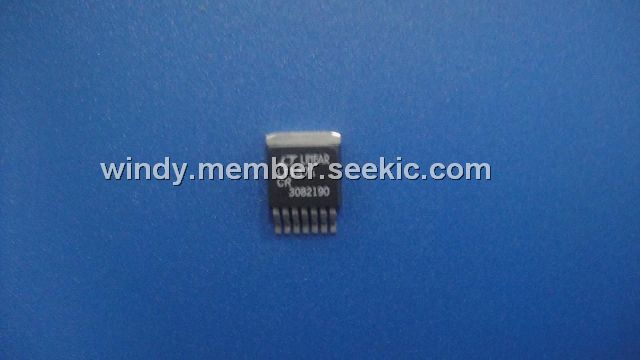

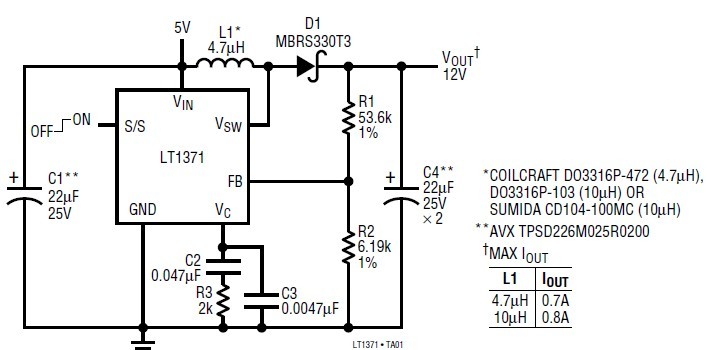

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1371CR |
|
IC REG MULTI CONFIG ADJ 3A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1371CR#PBF |
|
IC REG MULTI CONFIG ADJ 3A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1371CR#TR |
|
IC REG MULTI CONFIG ADJ 3A D2PAK |
Data Sheet |
|
|
||||||||||
|
LT1371CR#TRPBF |
|
IC REG MULTI CONFIG ADJ 3A D2PAK |
Data Sheet |
|
|
||||||||||
