Product Summary

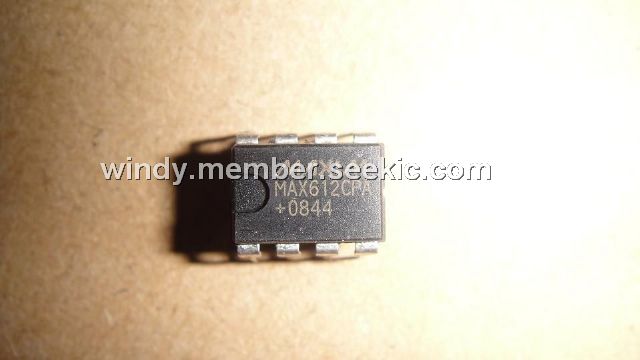

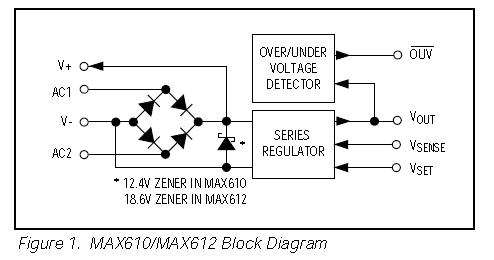

The MAX612CPA is AC-to-DC power converter. The device reduces the component count, size, and weight of 1/4 watt power supplies, thus minimizing the overall cost and simplifying designs. It has a full-wave rectifier, an 18V zener, and the output voltage is either the internally preset +5V or user adjustable from +1.3V to +15V.

Parametrics

Absolute maximum ratings:(1)Operating Temperature Range:0°C to +70°C;(2)Maximum Junction Temperature:+125°C;(3)Storage Temperature Range:-65°C to +150°C;(4)Lead Temperature (soldering, 10sec):+300°C;(5)Input Current:AC1, AC2( 250μs non-repetitive pulse):5A.AC1, AC2(continuous):120mA RMS,V+:60mA,All Other Terminals:10mA;(6)Input Voltage:AC1, AC2:17V,V+:16.2V,CUV:(V- - 0.3V) to -16V,All Other Terminals:(V- - 0.3V) to (V+ + 0.3V);(7)Output Current:V+, VOUT:60mA,OUV:10mA.

Features

Features:(1)Direct 110/220VAC to 5VDC Conversion;(2)Minimum External Component Count;(3)Output Voltage Preset to 5V ±4%;(4)70μA Typical Quiescent Current;(5)Over/Undervoltage Detection;(6)Power-Up Reset Circuit with Programmable Delay;(7)Programmable Current Limiting;(8)Programmable Output Voltage: 1.3V to 15V.
