MBRA320T3G

20 V, 3.0 A Schottky Rectifier, DO-214AC, Low Forward Voltage Drop, Guardring for Stress Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.03~0.03

PartNumber:: MBRA320T3G

Brand:: ON Semiconductor - ON | Pack: DO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joyce's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-29

From Other Seller

Part Number:MBRA320T3G
US $0.03 - 0.03
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MBRA320T3G is a Surface Mount Schottky Power Rectifier Employing the Schottky Barrier principle in a large area metal-to-silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlay contact. The MBRA320T3G is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical to the system.

Parametrics

MBRA320T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage,Working Peak Reverse, Voltage DC Blocking Voltage: 20 V; (2)Average Rectified Forward Current (At Rated VR, TL = 100℃); (3)IO: 3.0 A; (4)Non-Repetitive Peak Surge Current(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz): 80 A; (5)Storage Temperature Tstg: -65 to +150 ℃; (6)Operating Junction Temperature TJ: -65 to +125 ℃; (7)Voltage Rate of Change (Rated VR, TJ = 25℃) dv/dt: 10,000V/μs.

Features

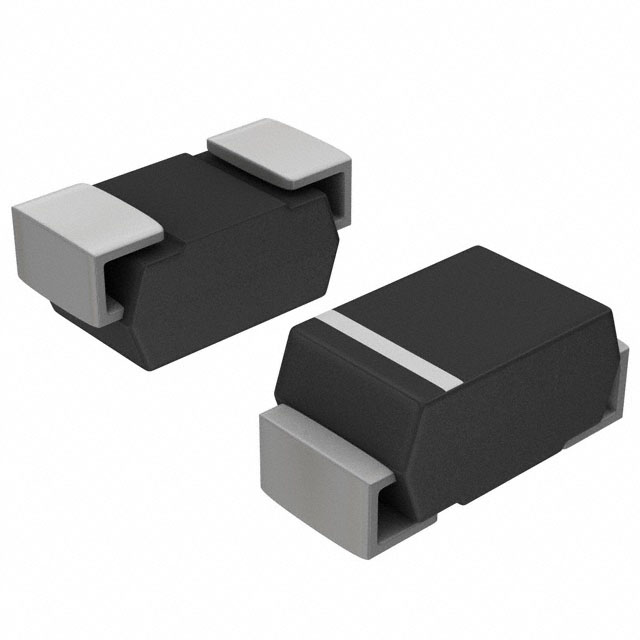

MBRA320T3G features: (1)Small Compact Surface Mountable Package with J-Bent Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)Very Low Forward Voltage Drop; (5)Guardring for Stress Protection; (6)Pb-Free Package is Available.
