Product Summary

The NTA4151PT1G is a Small Signal MOSFET.

Parametrics

NTA4151PT1G absolute maximum ratings: (1)Drain.to.Source Voltage: -20 V; (2)Gate.to.Source Voltage: ±6.0 V; (3)Continuous Drain Current: -760 mA; (4)Power Dissipation: SC-75: 301mW; SC-89: 313mW; (5)Pulsed Drain Current: ±1000mA; (6)Operating Junction and Storage Temperature: -55 to 150℃; (7)Continuous Source Current (Body Diode): -250mA; (8)Lead Temperature for Soldering Purposes: 260℃; (9)Gate to Source ESD Rating: ESD 1800 V.

Features

NTA4151PT1G features: (1)Low RDS(on) for Higher Efficiency and Longer Battery Life; (2)Small Outline Package (1.6 x 1.6 mm); (3)SC-75 Standard Gullwing Package; (4)ESD Protected Gate; (5)Pb-Free Packages are Available.

Diagrams

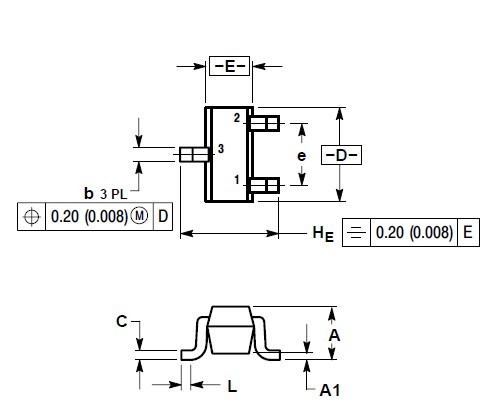

NTA4151PT1G PACKAGE DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NTA4151PT1G
NTA4151PT1G

ON Semiconductor

MOSFET -20V -760mA PChannel

Data Sheet

0-1: $0.17
1-25: $0.13
25-100: $0.09
100-500: $0.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NTA4001NT1
NTA4001NT1

ON Semiconductor

MOSFET 20V 238mA N-Channel

Data Sheet

Negotiable
NTA4001NT1G
NTA4001NT1G

ON Semiconductor

MOSFET 20V 238mA N-Channel

Data Sheet

0-1: $0.14
1-25: $0.09
25-100: $0.05
100-500: $0.04
NTA4151PT1
NTA4151PT1

ON Semiconductor

MOSFET -20V -760mA PChannel

Data Sheet

Negotiable
NTA4151PT1G
NTA4151PT1G

ON Semiconductor

MOSFET -20V -760mA PChannel

Data Sheet

0-1: $0.17
1-25: $0.13
25-100: $0.09
100-500: $0.07
NTA4153NT1
NTA4153NT1

ON Semiconductor

MOSFET 20V 915mA N-Channel

Data Sheet

Negotiable
NTA4153NT1G
NTA4153NT1G

ON Semiconductor

MOSFET 20V 915mA N-Channel

Data Sheet

0-1: $0.25
1-25: $0.16
25-100: $0.13
100-500: $0.09
