Product Summary

The JFET-input operational amplifier TL062IDR is designed as low-power version of the TL08_ series amplifiers. The TL062IDR is a high input impedance, wide bandwidth, high slew rate, and low input offset and input bias currents amplifier. The TL062IDR features the same terminal assignments as the TL07 and TL08. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in an integrated circuit.

Parametrics

TL062IDR absolute maximum ratings: (1)Supply voltage, VCC+: 18V; (2)Supply voltage, VCC-: 18V; (3)Differential input voltage, VID: ±30V; (4)Input voltage, VI: ±15V; (5)Package thermal impedance, θJA: 97℃/W; (6)Operating virtual junction temperature, TJ: 150 ℃; (7)Case temperature for 60 seconds, FK package: 260 ℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds, J, JG, U, or W package: 300℃; (9)Lead temperature 1,6 mm (1/6 inch) from case for 10 seconds, D, N, NS, P, PS, or PW package: 260℃; (10)Storage temperature range, Tstg: -65 to 150℃.

Features

TL062IDR features: (1)Very Low Power Consumption; (2)Typical Supply Current: 200 μA (Per Amplifier); (3)Wide Common-Mode and Differential Voltage Ranges; (4)Low Input Bias and Offset Currents; (5)Common-Mode Input Voltage Range Includes VCC+; (6)Output Short-Circuit Protection; (7)High Input Impedance: JFET-Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 3.5 V/μs Typ.

Diagrams

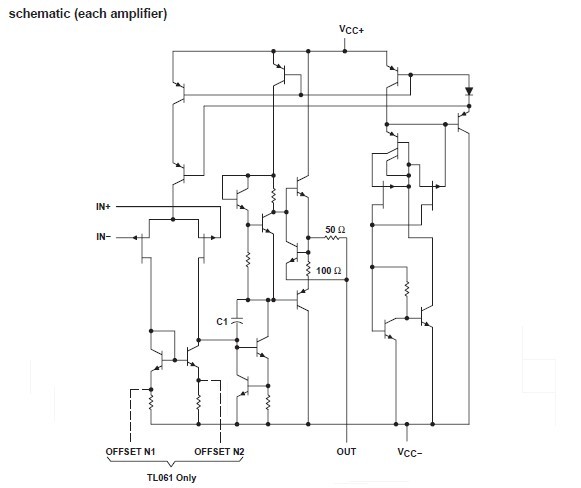

TL062IDR schematic
