Product Summary

The 8-channel CMOS analog multiplexers SN74LV4051APWR is designed for 2V to 5.5V VCC operation. The SN74LV4051APWR device handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications of SN74LV4051APWR include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-toanalog conversion systems.

Parametrics

SN74LV4051APWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7.0V; (2)Input voltage range, VI: -0.5V to 7.0V; (3)Switch I/O voltage range, VIO: -0.5V to VCC+0.5V; (4)Input clamp current, IIK (VI < 0): -20mA; (5)I/O diode current, IIOK (VIO < 0): -50mA; (6)Switch through current, IT (VIO = 0 to VCC): ±25mA; (7)Continuous current through VCC or GND: ±50mA.

Features

SN74LV4051APWR features: (1)2V to 5.5V VCC Operation; (2)Support Mixed-Mode Voltage Operation on All Ports; (3)High On-Off Output-Voltage Ration; (4)Low Crosstalk Between Switches; (5)Individual Switch Controls; (6)Extremely Low Input Current; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (8)ESD Protection Exceeds JESD 22.

Diagrams

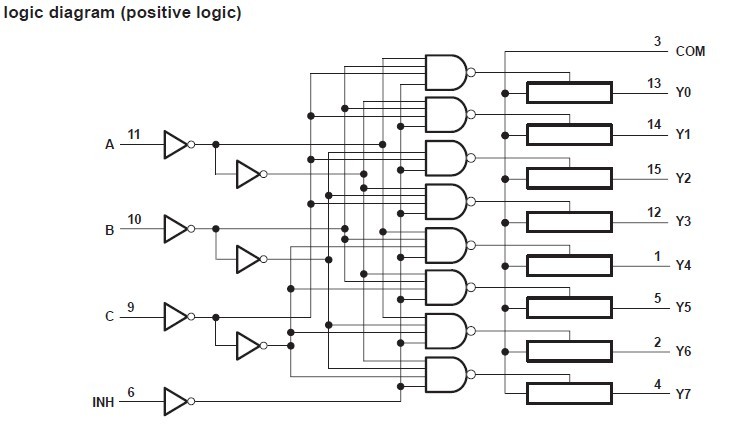

SN74LV4051APWR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LV4051APWR
SN74LV4051APWR
Texas Instruments
Multiplexer Switch ICs 8-Channel Analog
Data Sheet
0-1: $0.28
1-25: $0.20
25-100: $0.17
100-250: $0.15
SN74LV4051APWRE4
SN74LV4051APWRE4
Texas Instruments
Multiplexer Switch ICs 8-Channel Analog Mltplxr/Demltplxr
Data Sheet
0-1: $0.24
1-25: $0.19
25-100: $0.16
100-250: $0.14
SN74LV4051APWRG4
SN74LV4051APWRG4
Texas Instruments
Multiplexer Switch ICs 8-Channel Analog Mltplxr/Demltplxr
Data Sheet
0-1: $0.32
1-25: $0.23
25-100: $0.20
100-250: $0.17
