Product Summary

The PME271M660KR30 is intended for use as interference suppressors in X1 or X2 (across-the-line) applications. Multi-layer metallized paper. Encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94V-0. The impregnated paper ensures excellent stability giving outstanding reliability properties, especially in applications having continuous operation.

Parametrics

Absolute maximum ratings: (1)Rated voltage VAC, 50/60Hz: 275; (2)Capacitance range: 0.001-0.6 μF; (3)Temperature range: -40 to +110 °C; (4)Climatic category IEC: 40/110/56/B; (5)Capacitance tolerance: ± 10% for C > 0.1 μF, code K; (6)Approvals: S, N, D, FI, VDE, SEV, IMQ, UL, CSA.

Features

Features: (1)Good resistance to ionisation due to impregnated dielectric; (2)High dU/dt capability; (3)Small dimensions; (4)Safety approvals for worldwide use; (5)Self-extinguishing UL 94V-0 encapsulation material.

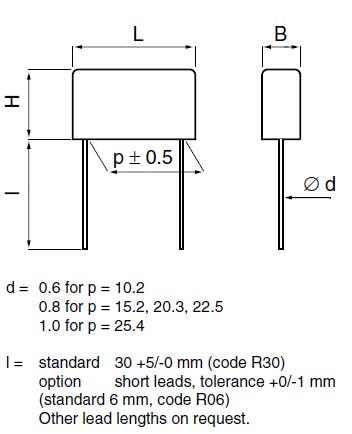

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PME271M660KR30
PME271M660KR30

Kemet

Film Capacitors 275volts 0.60uF 10% LS 25.4mm

Data Sheet

0-1: $3.43
1-50: $3.01
50-100: $2.79
100-500: $2.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PME260AA5470KR30
PME260AA5470KR30

Kemet

Film Capacitors 250volts 0.047uF 10% LS 10.2mm

Data Sheet

0-800: $0.57
800-1000: $0.43
1000-2000: $0.38
2000-5000: $0.34
PME260AB6330KR30
PME260AB6330KR30

Kemet

Film Capacitors 250volts 0.33uF 10% LS 15.2mm

Data Sheet

0-500: $0.84
500-1000: $0.64
1000-2000: $0.58
2000-5000: $0.51
PME260AC6470KR30
PME260AC6470KR30

Kemet

Film Capacitors 250volts 0.47uF 10% LS 20.3mm

Data Sheet

0-1: $1.31
1-50: $1.13
50-100: $1.06
100-500: $0.96
PME261EA4150MR30
PME261EA4150MR30

Kemet

Film Capacitors 630volts 1500pF 20% LS 10.2mm

Data Sheet

0-1320: $0.42
1320-2000: $0.37
2000-5000: $0.34
5000-10000: $0.29
PME261EA4220MR30
PME261EA4220MR30

Kemet

Film Capacitors 630volts 2200pF 20% LS 10.2mm

Data Sheet

0-1330: $0.43
1330-2000: $0.38
2000-5000: $0.34
5000-10000: $0.30
PME261EA4330MR30
PME261EA4330MR30

Kemet

Film Capacitors 630volts 3300pF 20% LS 10.2mm

Data Sheet

0-1320: $0.43
1320-2000: $0.38
2000-5000: $0.34
5000-10000: $0.30
