Product Summary

The TMP87P808M is designed as the high speed and high performance 8-bit single chip microcomputer which has 64Kbits one-time PROM.

Parametrics

TMP87P808M absolute maximum ratings: (1)supply voltage: -0.3V to 6.5V; (2)program voltage: -0.3V to 13.0V; (3)input voltage: -0.3V to Vdd+0.3V; (4)output voltage: -0.3V to Vdd+0.3V; (5)output current: 3.2mA for P1, P6 ; (6)output current total: 50mA for P1, P6; (7)power dissipation: 300mW for SDIP; (8)soldering temperature (time): 260℃ (10s); (9)storage temperature: -55℃ to 125℃; (10)operating temperature range: -30℃ to 70℃.

Features

TMP87P808M features: (1)hysteresis voltage typ 0.9V; (2)input current max ±2uA; (3)input resistance min 100kΩ and typ 220kΩ and max 450kΩ; (4)output leakage current 2uA; (5)output high voltage min 4.1V; (6)output low voltage max 0.4V.

Diagrams

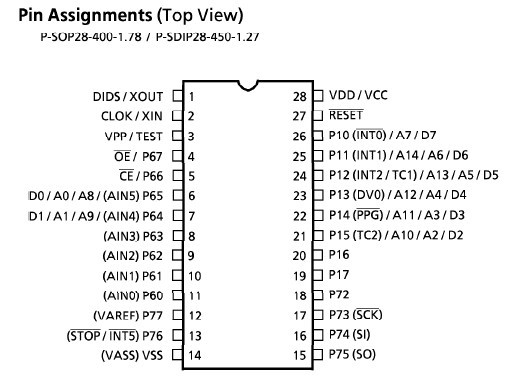

TMP87P808M pin assignment

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

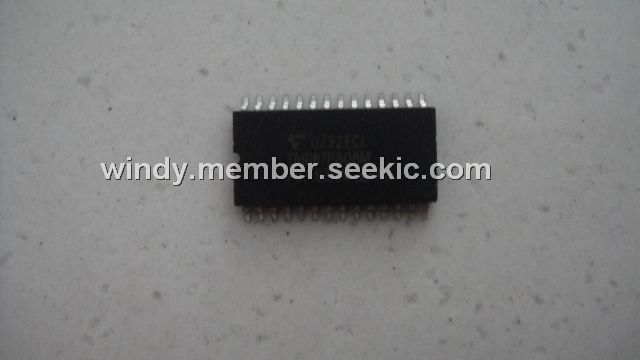

TMP87P808M
