Product Summary

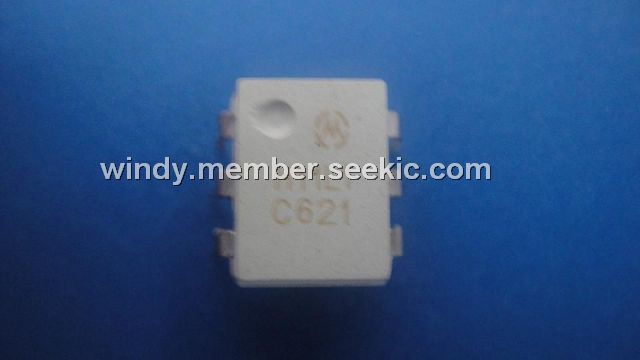

The H11L1 is a 6-Pin DIP Optoisolators Logic Output, which has a gallium arsenide IRED optically coupled to a high–speed integrated detector with Schmitt trigger output. Designed for applications requiring electrical isolation, fast response time, noise immunity and digital logic compatibility. The applications of the H11L1 are: (1)Interfacing Computer Terminals to Peripheral Equipment; (2)Digital Control of Power Supplies; (3)Line Receiver; (4)Digital Control of Motors and Other Servo Machine Applications; (5)Logic to Logic Isolator; (6)Logic Level Shifter.

Parametrics

H11L1 maximum ratings: (1)Reverse Voltage about input LED, VR: 6 Volts; (2)Forward Current about input LED,Continuous, IF: 60mA; Peak: 1.2 Amp; (3)LED Power Dissipation @ TA = 25℃ about input LED, PD: 120 mW; Derate above 25℃: 1.41 mW/℃; (4)Total Device Dissipation @ TA = 25℃, PD: 250mW; Derate above 25℃: 2.94 mW/℃; (5)Maximum Operating Temperature, TA: –40 to +85 ℃; (6)Storage Temperature Range, Tstg: –55 to +150 ℃; (7)Soldering Temperature (10 s), TL: 260 ℃; (8)Isolation Surge Voltage (Pk ac Voltage, 60 Hz, 1 Second Duration), VISO: 7500 Vac(pk).

Features

H11L1 features: (1)Guaranteed Switching Times, ton, toff < 4 us; (2)Built–In On/Off Threshold Hysteresis; (3)High Data Rate, 1 MHz Typical (NRZ); (4)Wide Supply Voltage Capability; (5)Microprocessor Compatible Drive.

Diagrams

H11L1 SCHEMATIC

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H11L1
H11L1

Everlight

Logic Output Optocouplers Optocouplers

Data Sheet

0-1: $0.49
1-50: $0.40
50-100: $0.35
100-500: $0.26
H11L1FM
H11L1FM

Fairchild Semiconductor

Logic Output Optocouplers Optocoupler Schmitt Trigger

Data Sheet

Negotiable
H11L1FR2VM
H11L1FR2VM

Fairchild Semiconductor

Logic Output Optocouplers Optocoupler Schmitt Trigger

Data Sheet

Negotiable
H11L1FVM
H11L1FVM

Fairchild Semiconductor

Logic Output Optocouplers Optocoupler Schmitt Trigger

Data Sheet

Negotiable
H11L1M
H11L1M

Fairchild Semiconductor

Logic Output Optocouplers Optocoupler LC Schmitt Trigger

Data Sheet

0-1: $0.59
1-25: $0.52
25-100: $0.42
100-250: $0.36
H11L1M-V
H11L1M-V

Everlight

Logic Output Optocouplers Optocouplers

Data Sheet

0-1: $0.49
1-50: $0.40
50-100: $0.35
100-500: $0.26
H11L1S(TA)
H11L1S(TA)

Everlight

Logic Output Optocouplers Optocouplers

Data Sheet

0-1: $0.49
1-50: $0.40
50-100: $0.35
100-500: $0.26
500-1000: $0.17
H11L1S(TA)-V
H11L1S(TA)-V

Everlight

Logic Output Optocouplers Optocouplers

Data Sheet

0-1: $0.49
1-50: $0.40
50-100: $0.35
100-500: $0.26
500-1000: $0.17
