Product Summary

The TDA7560 is a breakthrough BCD (Bipolar / CMOS / DMOS) technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high power car radio.The fully complementary P-Channel/N-Channel output structure of TDA7560 allows a rail to rail output voltage swing which, combined with high output current and minimised saturation losses sets new power references in the car-radio field, with unparalleled distortion performances.

Parametrics

TDA7560 absolute maximum ratings: (1)Operating Supply Voltage: 18V; (2)DC Supply Voltage: 28V; (3)Peak Supply Voltage (t = 50ms): 50V; (4)Output Peak Current: Repetitive (Duty Cycle 10% at f = 10Hz): 9A, Non Repetitive (t = 100ms): 10A; (5)Power dissipation, (Tcase = 70℃): 80W; (6)Junction Temperature: 150℃; (7)Storage Temperature: – 55 to 150℃.

Features

TDA7560 features: (1)excellent 2Ω drivingcapability; (2)HI-FI class distortion; (3)low output noise; (4)ST-BY function; (5)mute function; (6)automute at min. supply voltage detection.

Diagrams

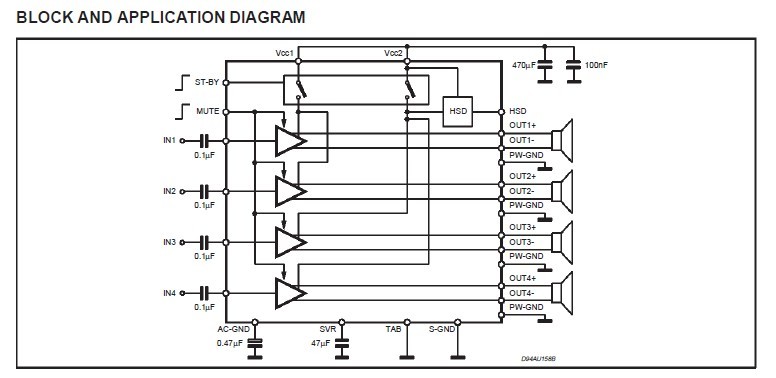

TDA7560 BLOCK AND APPLICATION DIAGRAM

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA7560
TDA7560

STMicroelectronics

Audio Amplifiers AMPLIFIER

Data Sheet

0-1: $16.17
1-10: $13.85
10-100: $10.61
100-250: $10.36
TDA7560L
TDA7560L

STMicroelectronics

Audio Amplifiers 4 x 50W Multi Quad Power Amplifer D

Data Sheet

0-179: $7.94
179-250: $6.15
250-500: $5.36
500-1000: $5.22
TDA7560H
TDA7560H

STMicroelectronics

Audio Amplifiers 4 x 50W Multi Quad Power Amplifer D

Data Sheet

0-210: $6.12
210-250: $5.58
250-500: $5.22
500-1000: $4.79
