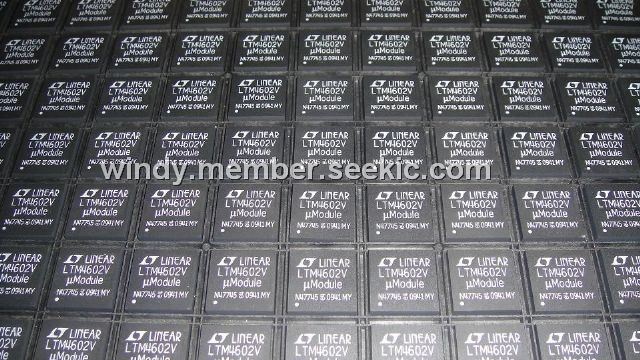

LTM4602EV#PBF

6A, High Effi ciency, DC/DC μModule, LGA, 0.6V to 5V Output Voltage, Up to 92% Efficiency

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~10.00

PartNumber:: LTM4602EV#PBF

Brand:: Linear Technology - Linear | Pack: LGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joyce's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-29

From Other Seller

Part Number:LTM4602EV#PBF
US $10.00 - 10.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

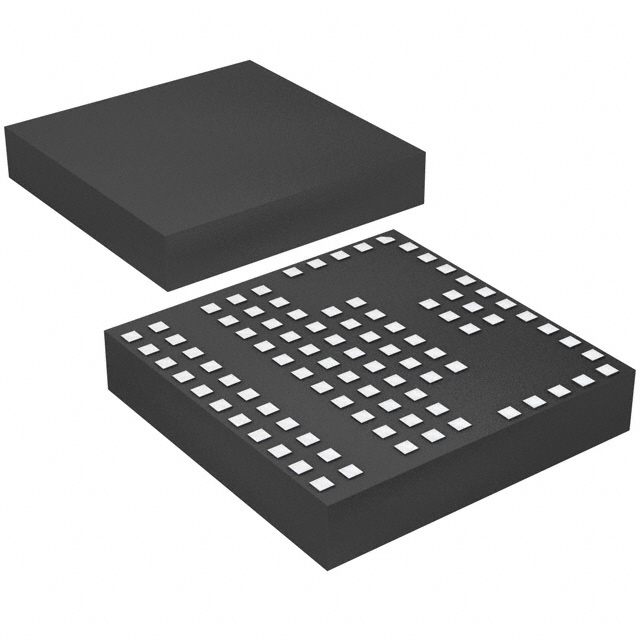

The LTM4602EV#PBF is a complete 6A DC/DC step down power supply. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 20V, the LTM4602EV#PBF supports an output voltage range of 0.6V to 5V, set by a single resistor. This high effi ciency design delivers 6A continuous current (8A peak), needing no heat sinks or airflow to meet power specifi cations. Only bulk input and output capacitors are needed to fi nish the design. The LTM4602EV#PBF is packaged in a thermally enhanced, compact (15mm × 15mm) and low profi le (2.8mm) over-molded Land Grid Array (LGA) package suitable for automated assembly by standard surface mount equipment. For the 4.5V to 28V input range version, refer to the LTM4602EV#PBFHV.

Parametrics

LTM4602EV#PBF absolute maximum ratings: (1)FCB, EXTVCC, PGOOD, RUN/SS, VOUT: –0.3V to 6V; (2)VIN, SVIN, fADJ: –0.3V to 20V; (3)VOSET, COMP: –0.3V to 2.7V; (4)Operating Temperature Range: –40℃ to 85℃; (5)Junction Temperature: 125℃; (6)Storage Temperature Range: –55℃ to 125℃.

Features

LTM4602EV#PBF features: (1)Complete Switch Mode Power Supply; (2)Wide Input Voltage Range: 4.5V to 20V; (3)6A DC, 8A Peak Output Current; (4)0.6V to 5V Output Voltage; (5)1.5% Output Voltage Regulation; (6)Ultrafast Transient Response; (7)Current Mode Control; (8)Pb-Free (e4) RoHS Compliant Package with Gold-Pad Finish; (9)PiCompatible with the LTM4600; (10)Up to 92% Effi ciency; (11)Programmable Soft-Start; (12)Output Overvoltage Protection; (13)Optional Short-Circuit ShutdowTimer; (14)See the LTM4602HV for OperatioUp to 28VIN.
