Product Summary

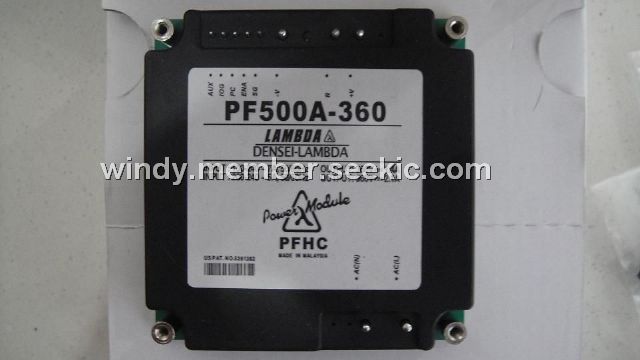

The PF500A-360 is Standard for input 100/200VAC and max. output power. The specified value is on condition with external components attached. Filtering capacitor and in-rush current limiting resistor are required as external components. Attach an external fuse at input line. Over voltage, Thermal protection, PFHC power on signal (ENA terminal), Inverter good signal (IOG terminal), Auxiliary power supply for external signal (AUX terminal).
Parametrics
Absolute maximum ratings: (1)Efficiency (typ): 90% (100VAC, full load), 94% (200VAC, full load); (2)Power factor: 0.95 (100VAC/200VAC at full load); (3)In-rush current: In-rush current limiting circuit: External limit resistor; (4)Parallel operation: N+1 redundant operation. Output current balancing (PC terminal).
Features
Features: (1)PFHC module, Conforms to IEC 1000-3-2, High power factor: 0.95, high efficiency: 90% Input: 85 ~ 265VAC, Output: 500, 1000W; (2)Wide baseplate temperature: –20 ~ +85°C Conduction cooling; (3)Provided in-rush current limiting; (4)N+1 parallel redundant operation; (5)2 year warranty.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PF500A-360 |
|
PWR CORRECTION MOD 360VDC |
Data Sheet |
|
|
||||||||||||
