Product Summary
The Intel WJLXT972C Single-Port 10/100 Mbps PHY Transceiver is an IEEE compliant Fast Ethernet PHY Transceiver that directly supports both 100BASE-TX and 10BASE-T applications. It provides a Media Independent Interface (MII) for easy attachment to 10/100 Media Access Controllers (MACs). Both full and half-duplex operation at 10 Mbps and 100 Mbps is supported. Operation mode can be set to auto-negotiation, parallel detection, or manual control. The WJLXT972C is powered from a single 3.3V power supply.
Parametrics
WJLXT972C absolute maximum rtings: (1)Supply Voltage VCC: -0.3 to 4.0 V; (2)Storage Temperature TST: -65 to +150 ℃.
Features
WJLXT972C features: (1)3.3V Operation; (2)IEEE 802.3-compliant 10BASE-T or 100BASE-TX with integrated filters; (3)Auto-negotiation and parallel detection; (4)MII interface with extended register capability; (5)Robust baseline wander correction; (6)Carrier Sense Multiple Access / Collision Detection(CSMA/CD) or full-duplex operation; (7)JTAG boundary scan; (8)MDIO serial port or hardware pin configurable; (9)Integrated, programmable LED drivers; (10)48-pin Low-profile Quad Flat Package.

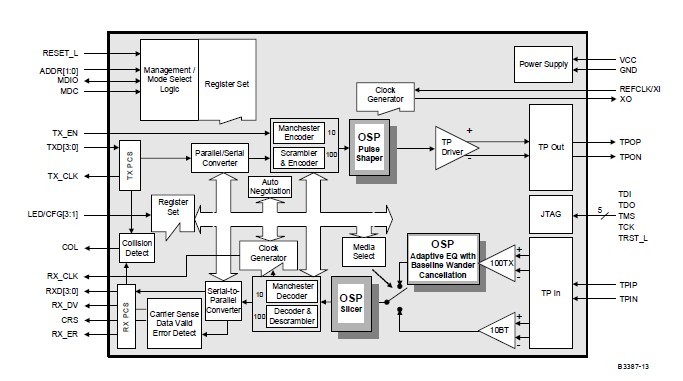

Diagrams
 |
