Product Summary

The LM2904N consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM2904N can be directly operated off of the standard a5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional g15V power supplies.

Parametrics

LM2904N absolute maximum ratings: (1)Supply Voltage, V+: 26V; (2)Operating Temperature Range: -40℃ to 85℃; (3)Differential Input Voltage: 26V; (4)Input Voltage: -0.3V to 26V; (5)Power Dissipation: Molded DIP: 830 mW; Small Outline Package (M): 530 mW; (6)Storage Temperature Range: -65℃ to 150℃; (7)Lead Temperature, DIP (Soldering, 10 seconds): 260℃; (8)Output Short Circuit to GND: (One Amplifier) (Note 2): V+≤15V and TA=25℃: Continuous; (9)Lead Temperature, Metal Can (Soldering, 10 seconds) 300℃ 300℃; (10)ESD Tolerance: 250V; (11)Input Current (VIN< -0.3V): 50 mA.

Features

LM2904N features: (1)Internally frequency compensated for unity gain; (2)Large dc voltage gain 100 dB; (3)Wide bandwidth (unity gain) 1 MHz; (4)Wide power supply range: Single supply 3V to 32V; or dual supplies: ±1.5V to ±16V; (5)Very low supply current drain (500 μA) essentially independent of supply voltage; (6)Low input offset voltage 2 mV; (7)Input common-mode voltage range includes ground; (8)Differential input voltage range equal to the power supply; (9)voltage; (10)Large output voltage swing 0V to Va b 1.5V.

Diagrams

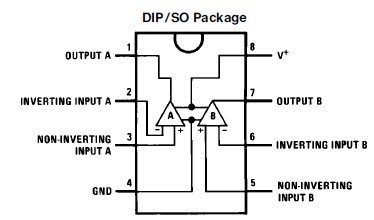

LM2904N Connection Diagrams
