Product Summary
The DM9000AEP is a fully integrated and cost-effective low pin count single chip Fast Ethernet controller with
a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V IO tolerance. The device supports 8-bit and 16-bit data interfaces to internal memory accesses for various processors.
Parametrics
Absolute maximum ratings:(1)Supply Voltage:-0.3V to 3.6V;(2)DC Input Voltage (VIN):-0.5V to 5.5V;(3)DC Output Voltage(VOUT):-0.3V to 3.6V;(4)Storage Temperature range:-65°C to +150°C;(5)Case Temperature:0°C to +85°C;(6)Ambient Temperature:0°C to +70°C;(7)Lead Temperature
(TL,soldering,10 sec.):+235°C.
Features
Features:(1)48-pin LQFP;(2)Supports processor interface: byte/word of I/O command to internal memory data operation;(3)Integrated 10/100M transceiver with AUTO-MDIX;(4)Supports back pressure mode for half-duplex mode flow control;(5)IEEE802.3x flow control for full-duplex mode;(6)Supports wakeup frame, link status change and magic packet events for remote wake up;(7)Integrated 16K Byte SRAM;(8)Build in 3.3V to 2.5V regulator;(9)Supports IP/TCP/UDP checksum generation and checking;(10)Supports automatically load vendor ID and product ID from EEPROM;(11)Optional EEPROM configuration;(12)Compatible with 3.3V and 5.0V tolerant I/O.

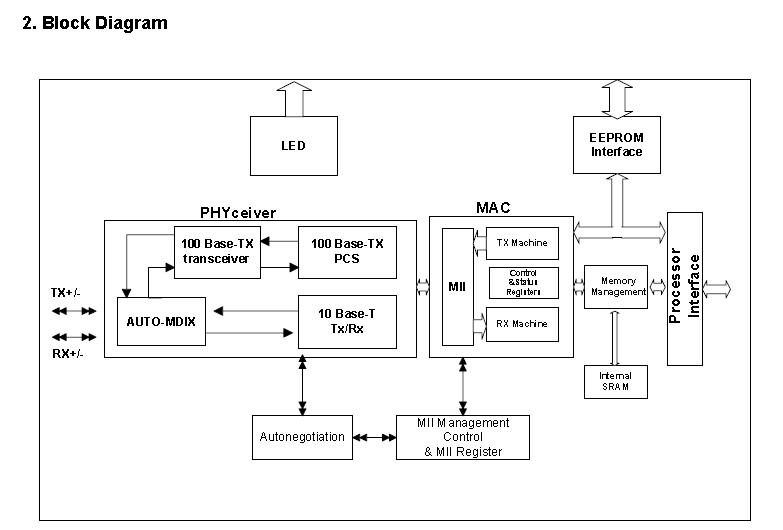

Diagrams
