Product Summary

High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems. AVX special high voltage MLC chip capacitor 1812AA102KAT1A meets these performance characteristics and is designed for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/dc blocking. The 1812AA102KAT1A designs exhibit low ESRs at high frequencies. Larger physical sizes than normally encountered chips are used to make high voltage MLC chip products. Special precautions must be taken in applying the 1812AA102KAT1A in surface mount assemblies. The temperature gradient during heating or cooling cycles should not exceed 4℃ per second. The preheat temperature must be within 50℃ of the peak temperature reached by the ceramic bodies through the soldering process. Chip sizes 1210 and larger should be reflow soldered only. 1812AA102KAT1A may require protective surface coating to prevent external arcing. For 1825, 2225 and 3640 sizes, AVX offers leaded version in either thru-hole or SMT configurations (for details see section on high voltage leaded MLC chips).

Features

1812AA102KAT1A features: (1)Capacitance Range: 10 pF to 0.047 μF (25℃, 1.0 ±0.2 Vrms at 1kHz, for ≤ 1000 pF use 1 MHz); (2)Capacitance Tolerances: ±5%, ±10%, ±20%; (3)Dissipation Factor: 0.1% max. (+25℃, 1.0 ±0.2 Vrms, 1kHz, for ≤ 1000 pF use 1 MHz); (4)Operating Temperature Range: -55℃ to +125℃; (5)Temperature Characteristic: 0 to ±30 ppm/℃ (0 VDC); (6)Voltage Ratings: 600, 630, 1000, 1500, 2000, 2500, 3000, 4000 & 5000 VDC (+125℃); (7)Insulation Resistance (+25℃, at 500 VDC): 100K MΩ min. or 1000 MΩ - μF min., whichever is less; (8)Insulation Resistance (+125℃, at 500 VDC): 10K MΩ min. or 100 MΩ - μF min., whichever is less; (9)Dielectric Strength: Minimum 120% rated voltage for 5 seconds at 50 mA max. current.

Diagrams

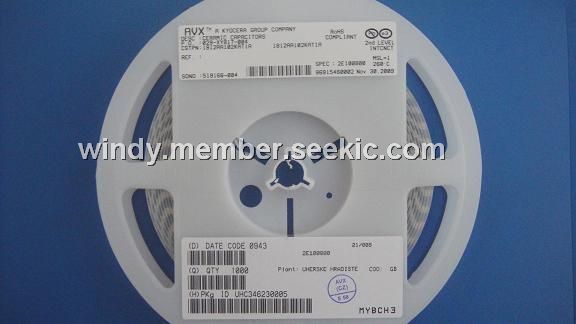

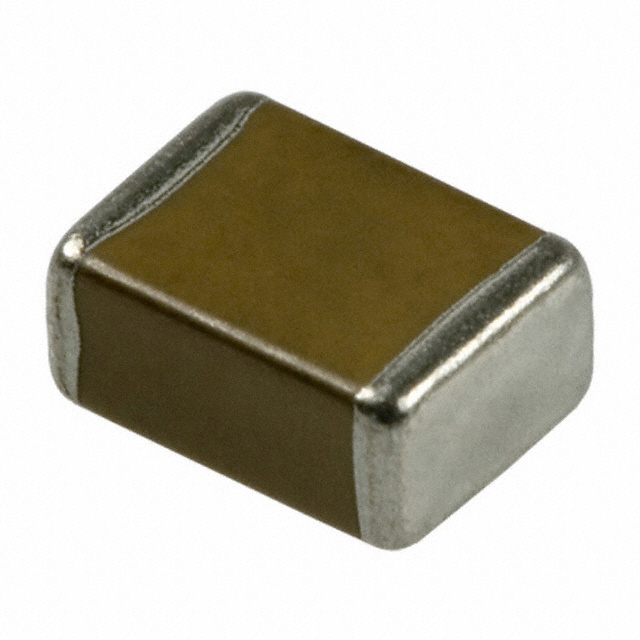

1812AA102KAT1A view

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1812AA102KAT1A
1812AA102KAT1A
AVX
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1000volts 1000pF 10% C0G
Data Sheet
0-1: $1.80
1-50: $1.51
50-100: $1.25
100-500: $0.72
500-1000: $0.35
1812AA102KAT1A\COL
1812AA102KAT1A\COL

CAP CER 1000PF 1KV 10% NP0 1812
Data Sheet
Negotiable
1812AA102KAT1A\SB
1812AA102KAT1A\SB
AVX
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1000V 1000pF 10%
Data Sheet
0-1: $1.80
1-50: $1.51
50-100: $1.25
100-500: $0.72
