Product Summary

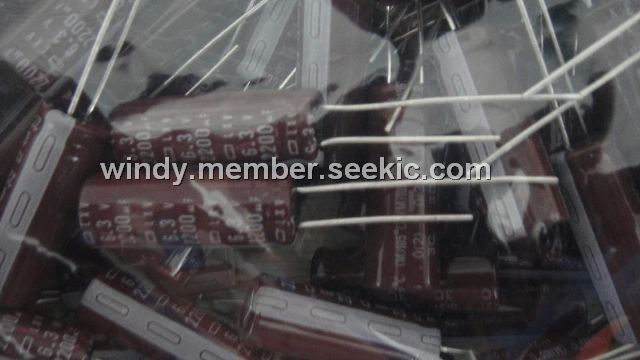

The ELXV6R3ELL222MJ30S is a miniature aluminum electrolytic capacitor.

Parametrics

ELXV6R3ELL222MJ30S specifications: (1)Category Temperature Range: -55 to +105℃; (2)Rated Voltage Range: 6.3 to 100Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Leakage Current: I=0.01CV or 3uA, whichever is greater. Where, I : Max. leakage current (MA), C : Nominal capacitance (uF), V : Rated voltage (V); (5)Low Temperature Characteristics: Capacitance change △C (-55℃ /+20℃) 0.7min; Max. impedance ratio (-55℃ /+20℃), 3max.(6.3Vdc : 4max.).

Features

ELXV6R3ELL222MJ30S features: (1)Low impedance; (2)Endurance with ripple current : 2,000 to 5,000 hours at 105C; (3)Solvent resistant type (see PRECAUTIONS AND GUIDELINES); (4)RoHS Compliant.

Diagrams

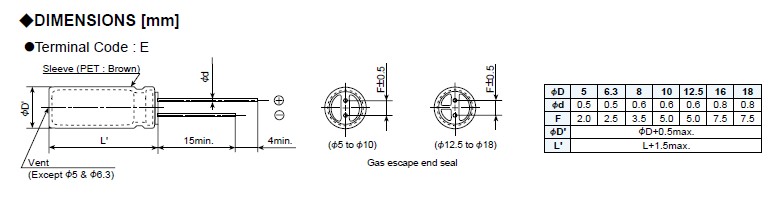

ELXV6R3ELL222MJ30S dimensions
