Product Summary
The MC33274ADR2G of monolithic operational amplifiers is quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip-R-Trim element for input offset voltage reduction. The MC33274ADR2G of operational amplifiers exhibits low input offset voltage and high gain bandwidth product.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: +36 V; (2)Output Short Circuit Duration: Indefinite sec; (3)Maximum Junction Temperature: +150 °C; (4)Storage Temperature: -60 to +150 °C; (5)ESD Protection at Any Pin: Human Body Model: 2000 V, Machine Model: 200 V; (6)Operating Temperature Range: -40 to +85 °C.
Features
Features: (1)Input Offset Voltage Trimmed to 100 μV (Typ); (2)Low Input Bias Current: 300 nA; (3)Low Input Offset Current: 3.0 nA; (4)High Input Resistance: 16 MΩ; (5)Low Noise: 18 nV/ √ Hz @ 1.0 kHz; (6)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (7)High Slew Rate: 10 V/μs; (8)Power Bandwidth: 160 kHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

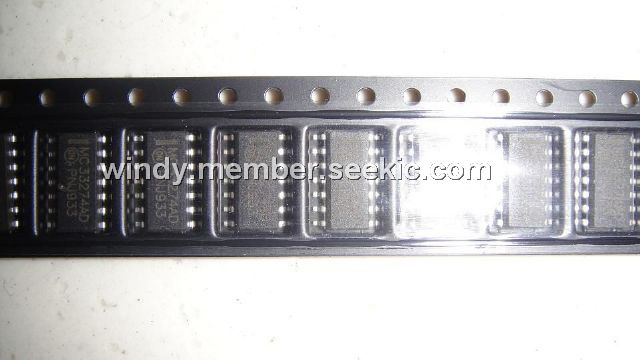

 MC33274ADR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 3-36V Quad Low Noise Low VIO Ind. Temp |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MC3302/4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DW |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWG |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
|
MC33023DWR2 |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWR2G |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
