Product Summary

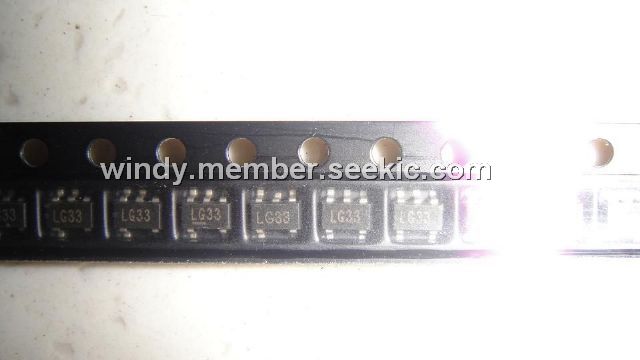

The MIC5219-3.3YM5TR is an efficient linear voltage regulator with high peak output current capability, very-low-dropout voltage, and better than 1% output voltage accuracy. Dropout is typically 10mV at light loads and less than 500mV at full load. The MIC5219-3.3YM5TR is designed to provide a peak output current for start-up conditions where higher inrush current is demanded.
Parametrics
Absolute maximum ratings: (1)Supply Input Voltage (VIN): –20V to +20V; (2)Power Dissipation (PD): Internally Limited; (3)Junction Temperature (TJ): –40°C to +125°C; (4)Storage Temperature (TS): –65°C to +150°C; (5)Lead Temperature (Soldering, 5 sec.): 260°C.
Features
Features: (1)Low 500mV maximum dropout voltage at full load; (2)Extremely tight load and line regulation; (3)Tiny SOT-23-5 and MM8?power MSOP-8 package; (4)Ultra-low-noise output; (5)Low temperature coefficient; (6)Current and thermal limiting; (7)Reversed-battery protection; (8)CMOS/TTL-compatible enable/shutdown control; (9)Near-zero shutdown current.

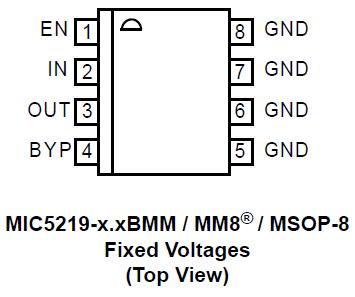

Diagrams
 |
