Product Summary

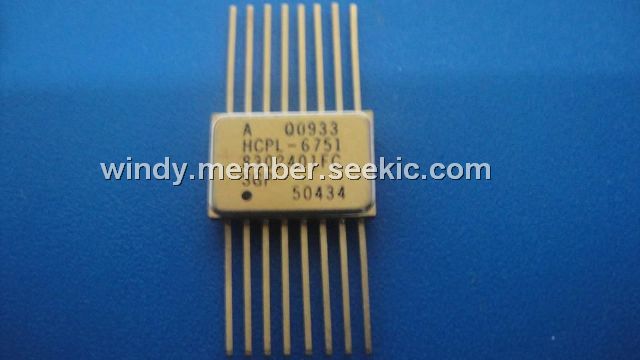

The HCPL-6751 is single, dual, and quad channel, hermetically sealed optocoupler. It is capable of operation and storage over the full military temperature range and can be purchased as either standard product or with full MIL-PRF-38534 Class Level H or K testing or from the appropriate DSCC Drawing. The device is manufactured and tested on a MIL-PRF-38534 certified line.
Parametrics
Absolute Maximum Ratings:(1)Storage Temperature Range:-65°C to +150°C;(2)Operating Temperature:-55°C to +125°C;(3)Case Temperature:+170°C;(4)Junction Temperature:+175°C;(5)Lead Solder Temperature:260°C for 10s;(6)Output Current:40 mA;(7)Output Voltage:-0.5 to 20 V;(8)Supply Voltage:-0.5 to 20 V;(9)Output Power Dissipation (Each Channel):50 mW;(10)Peak Input Current (Each Channel, <1 ms Duration):20mA;(11)Average Input Current:10mA;(12)Reverse Input Voltage:5V;(13)Package Power Dissipation:200mW.
Features
Features:(1)Dual Marked with Device Part Number and DSCC Drawing Number;(2)Manufactured and Tested on a MIL-PRF-38534 Certified Line;(3)QML-38534, Class H and K;(4)Five Hermetically Sealed Package Configurations;(5)Performance Guaranteed, Over -55°C to +125°C;(6)Low Input Current Requirement: 0.5 mA;(7)High Current Transfer Ratio: 1500% Typical @ IF = 0.5 mA;(8)Low Output Saturation Voltage: 0.11 V Typical;(9)1500 Vdc Withstand Test Voltage;(10)High Radiation Immunity.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-6751 |
Avago Technologies |
Logic Output Optocouplers 4Ch 1500%CTR Hermetically sealed |
Data Sheet |
|
|
||||||||||||
