Product Summary

The S80296SA50 is a member of Intel’s 16-bit MCS 96 microcontroller family. The S80296SA50 features 6 Mbytes of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. The device has hardware and instructions to support various digital signal processing algorithms.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: –60°C to +150°C; (2)Supply Voltage with Respect to VSS: –0.5 V to +7.0 V; (3)Power Dissipation: 1.5 W.

Features

Features: (1)50 MHz Operation; (2)6 Mbytes of Linear Address Space; (3)512 Bytes of Register RAM; (4)2 Kbytes of Code/Data RAM; (5)Register-register Architecture; (6)Optional Phase-locked Loop (PLL) Circuitry with 2x or 4x Clock Multiplier; (7)32 I/O Port Pins.

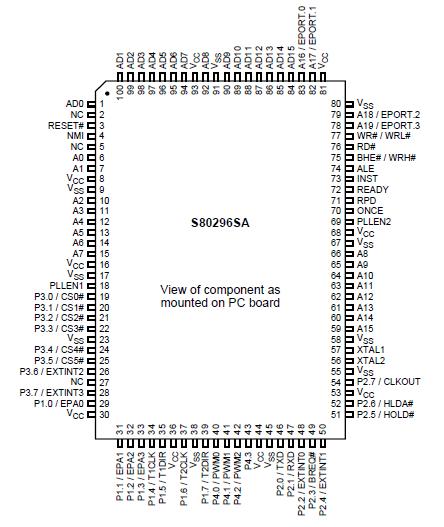

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

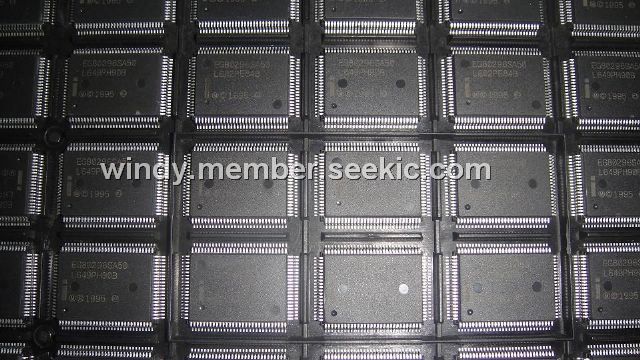

S80296SA50
S80296SA50


IC MPU 16BIT 5V 50MHZ 100QFP

Data Sheet

Negotiable
