Product Summary
The TC4017BP is decimal Johnson counter consisting of 5 stage D-type flip-flop equipped with the decoder to convert the output to decimal. Depending on the number of count pulses fed to CLOCK or CLOCK INHIBIT one output among 10 output lines “Q0” through “Q9” becomes “H” level. The counter TC4017BP advances its state at rising edge of CLOCK (CLOCK INHIBIT = “L”) or falling edge of CLOCK INHIBIT (CLOCK = “H”). RESET input to “H” level resets the counter to Q0 = “H” and Q1 through Q9 = “L” regardless of CLOCK and CLOCK INHIBIT.
Parametrics
TC4017BP absolute maximum ratings: (1)DC supply voltage, VDD: VSS - 0.5~VSS + 20 V; (2)Input voltage, VIN: VSS - 0.5~VDD + 0.5 V; (3)Output voltage, VOUT: VSS - 0.5~VDD + 0.5 V; (4)DC input current, IIN: ±10 mA; (5)Power dissipation, PD: 300 (DIP)/180 (SOIC) mW; (6)Operating ambient temperature range, Topr: -40~85 ℃; (7)Storage temperature range, Tstg: -65~150 ℃.
Features
TC4017BP features: (1)5 stage D-type flip-flop equipped with the decoder to convert the output to decimal; (2)DC supply voltage, VDD: 3 to18 V; (3)Input voltage VIN: 0 to VDD V.

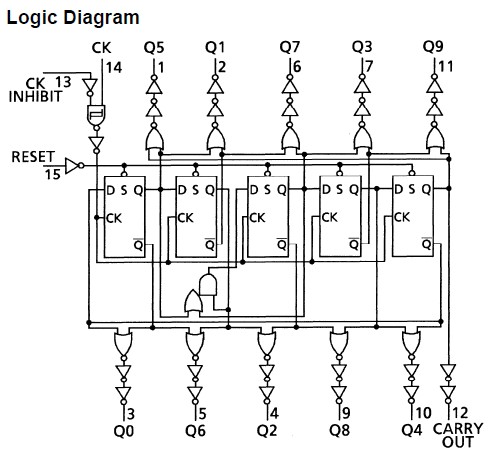

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC4017BP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
TC4017BP(F,N,M) |
|
IC COUNTER/DIVIDER DECADE 16-DIP |
Data Sheet |
Negotiable |
|
||||||
 |
TC4017BP(N) |
Toshiba |
IC COUNTER/DIVIDER DECADE 16-DIP |
Data Sheet |
|
|
||||||
