Product Summary

The DC-DC converter module V375A12C600BG uses advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency. The applications of the V375A12C600BG include Off-line systems with PFC front ends, industrial and process control, distributed power, medical, ATE, communications, defense, aerospace.

Parametrics

V375A12C600BG absolute maximum ratings: (1)+In to –In voltage: -0.5 to +525 Vdc; (2)PC to –In voltage: -0.5 to +7.0 Vdc; (3)PR to –In voltage: -0.5 to +7.0 Vdc; (4)SC to -Out voltage: -0.5 to +1.5 Vdc; (5)-Sense to -Out voltage: 1.0 Vdc; (6)Isolation voltage: in to out: 3000 Vrms, Test voltage; in to base: 1500 Vrms, Test voltage; out to base: 500 Vrms, Test voltage; (7)Operating Temperature: -55 to +100 ℃ M-Grade; (8)Storage Temperature: -65 to +125 ℃ M-Grade; (9)Pin soldering temperature: 500 (260) °F (℃) at <5 sec; wave solder; 750 (390) °F (℃) at <7 sec; hand solder; (10)Mounting torque: 5 (0.57) in-lbs (N-m), 6 each.

Features

V375A12C600BG features: (1)RoHS Compliant (with F or G pin option); (2)DC input range: 250 – 425 V; (3)Input surge withstand: 500 V for 100 ms; (4)DC output: 2 – 54 V; (5)Programmable output: 10 to 110%; (6)Regulation: ±0.25% no load to full load; (7)Efficiency: Up to 89%; (8)Maximum operating temp: 100℃, full load; (9)Power density: up to 120 W per cubic inch; (10)Height above board: 0.43 in. (10,9 mm); (11)Parallelable, with N+M fault tolerance; (12)Low noise ZCS/ZVS architecture.

Diagrams

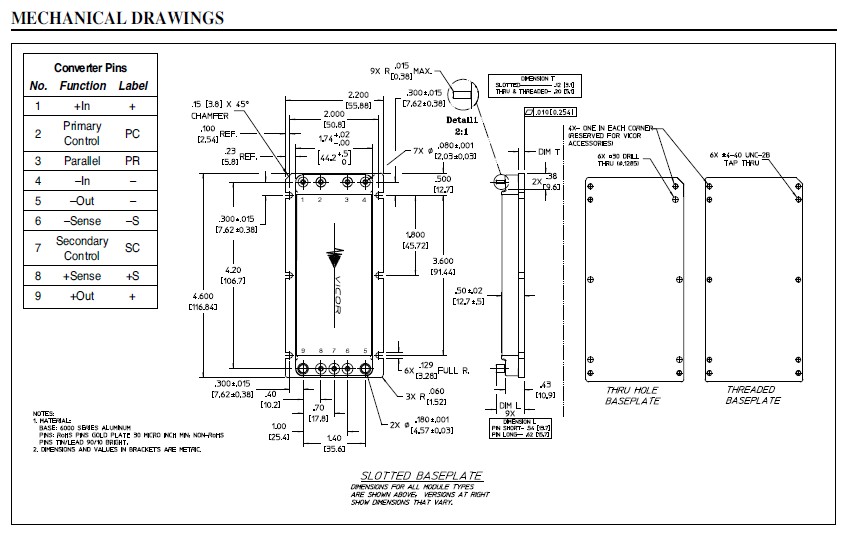

V375A12C600BG mechanical drawings

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

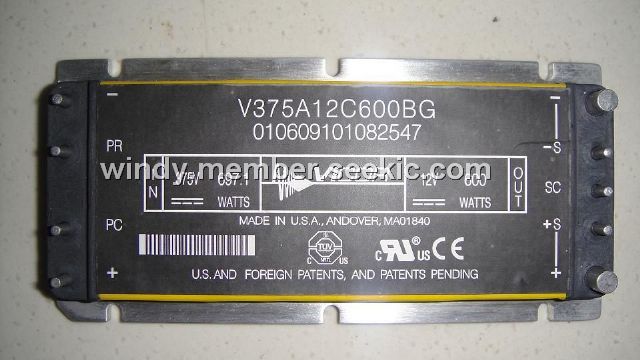

V375A12C600BG
V375A12C600BG

CONVERTER MOD DC/DC 12V 600W
Data Sheet
0-1: $185.40
V375A12C600BG2
V375A12C600BG2

CONVERTER MOD DC/DC 12V 600W
Data Sheet
0-1: $185.40
V375A12C600BG3
V375A12C600BG3

CONVERTER MOD DC/DC 12V 600W
Data Sheet
0-1: $185.40
