Product Summary
The 2MBI300TA-060 is a IGBT module from Fuji Electric.
Parametrics
2MBI300TA-060 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V ; (2)Gate-Emitter voltage, VGES: ±20V ; (3)Collector current, Continuous, IC: 300A ; (4)Collector current, 1ms, ICP: 600A; (5)Collector current,1ms, -IC: 300A; (6)Collector current, 1ms, -Ic pulse: 600A; (7)Collector Power Dissipation, 1 device, Pc: 860W ; (8)Junction temperature, Tj: +150℃; (9)Storage temperature, Tstg: -40 to +125℃.
Features
2MBI300TA-060 features: (1)Zero gate voltage Collector current, ICES: 2.0mA; (2)Gate-Emitter leakage current, IGES: 400nA; (3)Gate-Emitter threshold voltage, VGE(th): 6.2 to 7.7V.

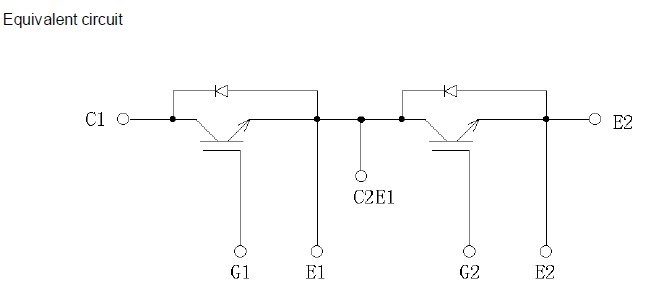

Diagrams
