Product Summary
The 242NQ030 high current Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Parametrics
Absolute maximum ratings: (1) Max. Average Forward Current (50% duty cycle @ TC = 111° C, rectangular wave form):240A; (2) Max. Peak One Cycle Non-Repetitive Surge Current:27000A(5μs Sine or 3μs Rect. pulse), 3000A(10ms Sine or 6ms Rect. pulse);(3)Non-Repetitive Avalanche Energy(TJ = 25 °C, IAS = 48 Amps, L = 0.19 MHz):216mJ;(4)Repetitive Avalanche Current(Current decaying linearly to zero in 1μsec frequency limited by TJ max. VA = 1.5 x VR typical):48A.
Features
Features: (1)150° C TJ operation; (2)Unique high power, Half-Pak module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Very low forward voltage drop; (5)High frequency operation;(6)Guard ring for enhanced ruggedness and long term reliability

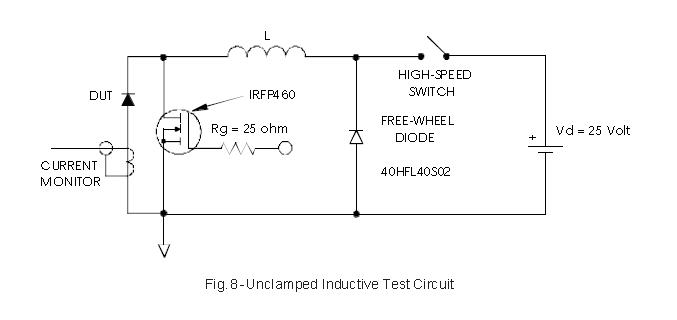

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
242NQ030 |
DIODE SCHOTTKY 30V 240A HALF-PAK |
Data Sheet |
Negotiable |
|
||||||
242NQ030PbF |
Other |
Data Sheet |
Negotiable |
|
||||||
242NQ030R |
Vishay |
Schottky (Diodes & Rectifiers) 240 Amp 30 Volt 27000 Amp IFSM |
Data Sheet |
Negotiable |
|
