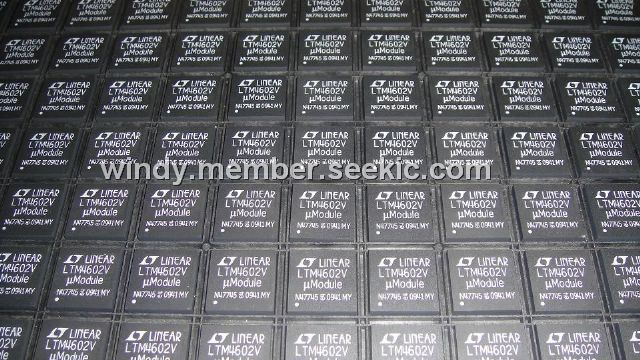

LTM4602EV

6A DC/DC, step down, power FETs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~10.00

PartNumber:: LTM4602EV

Brand:: Linear Integrated Systems - Linear Systems | Pack: BGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joyce's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-16

From Other Seller

Part Number:LTM4602EV
US $10.00 - 10.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTM4602EV is a complete 6A DC/DC step down power supply. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over an input voltage range of 4.5V to 20V, the LTM4602EV supports an output voltage range of 0.6V to 5V, set by a single resistor. This high effi ciency design delivers 6A continuous current (8A peak), needing no heat sinks or airflow to meet power specifications. Only bulk input and output capacitors are needed to finish the design.

Parametrics

Absolute maximum ratings: (1)FCB, EXTVCC, PGOOD, RUN/SS, VOUT: –0.3V to 6V; (2)VIN, SVIN, fADJ: –0.3V to 20V; (3)VOSET, COMP: –0.3V to 2.7V; (4)Operating Temperature Range: –40℃ to 85℃; (5)Junction Temperature: 125℃; (6)Storage Temperature Range: –55℃ to 125℃.

Features

Features: (1)Complete Switch Mode Power Supply; (2)Wide Input Voltage Range: 4.5V to 20V; (3)6A DC, 8A Peak Output Current; (4)0.6V to 5V Output Voltage; (5)1.5% Output Voltage Regulation; (6)Ultrafast Transient Response; (7)Current Mode Control; (8)Pb-Free (e4) RoHS Compliant Package with Gold-Pad Finish; (9)Pin Compatible with the LTM4600.
