Product Summary

The ATTINY26L-8PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY26L-8PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The ATTINY26L-8PU has a high precision ADC with up to 11 single ended channels and 8 differential channels. Seven differential channels have an optional gain of 20x. Four out of the seven differential channels, which have the optional gain, can be used at the same time. The ATTINY26L-8PU also has a high frequency 8-bit PWM module with two independent outputs. Two of the PWM outputs have inverted non-overlapping output pins ideal for synchronous rectification.

Parametrics

ATTINY26L-8PU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin except RESET with Respect to Ground: -0.5V to VCC + 0.5V; (4)Voltage on RESET with Respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATTINY26L-8PU features: (1)High-performance, Low-power AVR?8-bit Microcontroller; (2)118 Powerful Instructions Most Single Clock Cycle Execution; (3)32 x 8 General Purpose Working Registers; (4)Fully Static Operation; (5)Up to 16 MIPS Throughput at 16 MHz; (6)2.7V - 5.5V for ATtiny26L; (7)0 - 8 MHz for ATtiny26L.

Diagrams

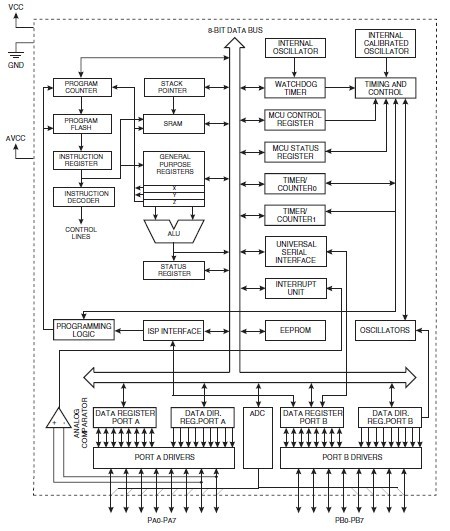

ATTINY26L-8PU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATtiny26L-8PU
ATtiny26L-8PU

Atmel

8-bit Microcontrollers (MCU) 2kB Flash 128B EE 128B SRAM

Data Sheet

0-1: $1.84
1-10: $1.53
10-25: $1.15
25-100: $1.04
