AD7225KNZ

LC2MOS, Quad 8-Bit DAC, Separate Reference Inputs, –0.3 V, +17 V, Skinny 24-Pin DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.50~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.50~5.50

PartNumber:: AD7225KNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joyce's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-29

From Other Seller

Part Number:AD7225KNZ
US $5.50 - 5.50
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

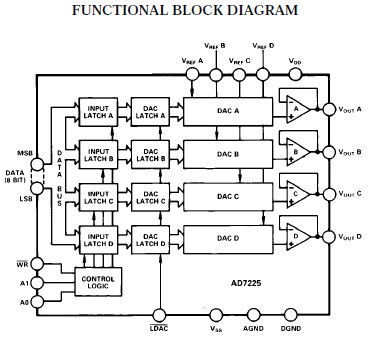

The AD7225KNZ contains four 8-bit voltage output digital-toanalog converters, with output buffer amplifiers and interface logic on a single monolithic chip. Each D/A converter has a separate reference input terminal. No external trims of the AD7225KNZ are required to achieve full specified performance for the part. The AD7225KNZ is fabricated on an all ion-implanted high-speed Linear Compatible CMOS (LC2MOS) process which has been specifically developed to integrate high speed digital logic circuits and precision analog circuitry on the same chip.

Parametrics

AD7225KNZ absolute maximum ratings: (1)VDD to AGND: –0.3 V, +17 V; (2)VDD to DGND: –0.3 V, +17 V; (3)VDD to VSS: –0.3 V, +24 V; (4)AGND to DGND: –0.3 V, VDD; (5)Digital Input Voltage to DGND: –0.3 V, VDD + 0.3 V; (6)VREF to AGND: –0.3 V, VDD + 0.3 V; (7)VOUT to AGND: VSS, VDD; (8)Power Dissipation (Any Package) to +75℃: 500 mW; (9)Derates above 75℃ by: 2.0 mW/℃; (10)Operating Temperature: Commercial (K, L Versions): –40℃ to +85℃; Industrial (B, C Versions): –40℃ to +85℃; Extended (T, U Versions): –55℃ to +125℃; (11)Storage Temperature: –65℃ to +150℃; (12)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7225KNZ features: (1)Four 8-Bit DACs with Output Amplifiers; (2)Separate Reference Input for Each DAC; (3)uP Compatible with Double-Buffered Inputs; (4)Simultaneous Update of All Four Outputs; (5)Operates with Single or Dual Supplies; (6)Extended Temperature Range Operation; (7)No User Trims Required; (8)Skinny 24-Pin DIP, SOIC and 28-Terminal Surface Mount Packages.
