LTM2882V-5

32-Pin (15mm × 11.25mm × 2.8mm) LGA, 5V, transceiver

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.60~10.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.60~10.60

PartNumber:: LTM2882V-5

Brand:: Linear Technology - Linear | Pack: LGA | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Joyce's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-14

From Other Seller

Part Number:LTM2882V-5
US $10.60 - 10.60
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

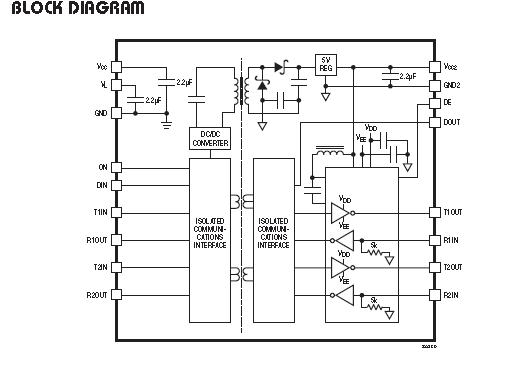

The LTM2882V-5 is a complete galvanically isolated dual RS232 μModule® transceiver. No external components are required. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply. This device is ideal for systems with different grounds, allowing for large common mode voltages.

Parametrics

Absolute maximum ratings:(1)VCC to GND:–0.3V to 6V;(2)VL to GND:–0.3V to 6V;(3)VCC2 to GND2:–0.3V to 6V;(4)Driver Output Voltage:T1OUT, T2OUT to GND2:-15V to 15V;(5)Receiver Input Voltage:R1IN, R2IN to GND2:–25V to 25V;(6)Storage Temperature Range:–55°C to 125°C;(7)Peak Refl ow Temperature (Soldering, 10 sec):245°C;(8)Logic Inputs:T1IN, T2IN, ON, DIN to GND:-0.3V to (VL + 0.3V),DE to GND2:-0.3V to (VCC2 + 0.3V);(9)Logic Outputs:R1OUT, R2OUT to GND:-0.3V to (VL + 0.3V),DOUT to GND2:-0.3V to (VCC2 + 0.3V).

Features

Features:(1)Isolator μModule Technology;(2)Isolated Dual RS232 Transceiver: 2500VRMS;(3)Integrated Isolated DC/DC Converter: 1W, 65% Effi ciency;(4)No External Components Required;(5)1.62V to 5.5V Logic Supply for Flexible Digital Interface;(6)5V Operation;(7)High Common Mode Transient Immunity: 30kV/μs;(8)Common Mode Working Voltage: 560VPEAK;(9)True RS232 Compliant Output Levels;(10)Small Low Profi le (15mm × 11.25mm × 2.8mm) Surface Mount LGA Package.
