Product Summary

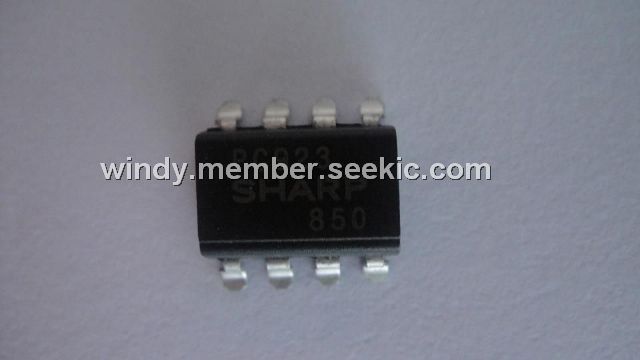

The PC923 is a High Speed Photocoupler for MOS-FET / IGBT Drive.
Parametrics
PC923 absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Reverse voltage VR: 6 V; (3)Supply voltage VCC: 35 V; (4)output current I1: 0.1 A; (5)2O1 peak output current: IO1P 0.4 A; (6)O2 output current IO2: 0.1 A; (7)2O2 peak output current: IO2P 0.4 A; (8)O1 output voltage VO1: 35 V; (9)Power dissipation PO: 500 mW; (10)Total power dissipation P tot: 550 mW; (11)Operating temperature T opr: - 25 to + 80 ℃; (12)Storage temperature T stg: - 55 to + 125 ℃; (13)4Soldering temperature T sol: 260 ℃.
Features
PC923 features: (1)Built-in direct drive circuit for MOS-FET/IGBT drive( IO1P , I O2P : 0.4A); (2)High speed response( tPLH , t PHL: MAX. 0.5 m s ); (3)Wide operating supply voltage range ( Vcc : 15 to 30V, Ta = -10 to 60℃); (4)High noise reduction type ; (5)Recognized by UL, file No. E64380; (6)High isolation voltage between input and output (VISO=5 000 V rms).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
PC923 |
Other |
Data Sheet |
Negotiable |
|
||||||
PC923L0NIP0F |
Sharp Microelectronics |
High Speed Optocouplers Gull Wing SMT Hi Speed 15Mb/s |
Data Sheet |
Negotiable |
|
|||||
PC923L0NSZ0F |
Sharp Microelectronics |
High Speed Optocouplers Photocoupler Hi Speed MOSFET/IGBT |
Data Sheet |
Negotiable |
|
|||||
PC923L0YSZ0F |
Sharp Microelectronics |
High Speed Optocouplers VDE Approved PC923L0NSZ0F |
Data Sheet |
Negotiable |
|
|||||
PC923X |
PHOTOCOUPLER OPIC 8-DIP |
Data Sheet |
Negotiable |
|
||||||
PC923X11 |
PHOTOCOUPLER OPIC INVERTED 8-DIP |
Data Sheet |
Negotiable |
|
||||||
PC923XI |
PHOTOCOUPLER OPIC 8-SMD |
Data Sheet |
Negotiable |
|
