Product Summary

The MMBT3904LT1G is a general purpose transistor with NPN silicon.

Parametrics

MMBT3904LT1G maximum ratings: (1)Collector.Emitter Voltage: 40 Vdc; (2)Collector.Base Voltage: 60 Vdc; (3)Emitter.Base Voltage: 6.0 Vdc; (4)Collector Current-Continuous: 200 mAdc; (5)Thermal Resistance Junction to Ambient: 556℃/W; (6)Junction and Storage Temperature: -55 to +150℃.

Features

MMBT3904LT1G features: Pb-Free Packages are Available.

Diagrams

MMBT3904LT1G simplified diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

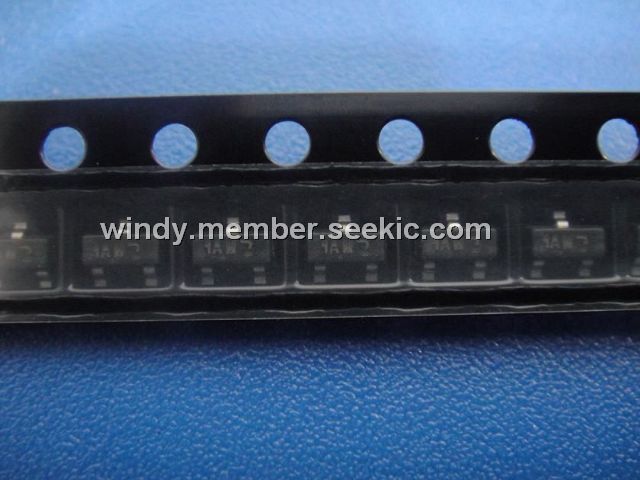

MMBT3904LT1G
MMBT3904LT1G

ON Semiconductor

Transistors Bipolar (BJT) NPN GENERAL PURPOSE

Data Sheet

0-1: $0.07
1-25: $0.06
25-100: $0.03
100-500: $0.02
MMBT3904LT1G  ON 08+
MMBT3904LT1G ON 08+

Other


Data Sheet

Negotiable
