Product Summary

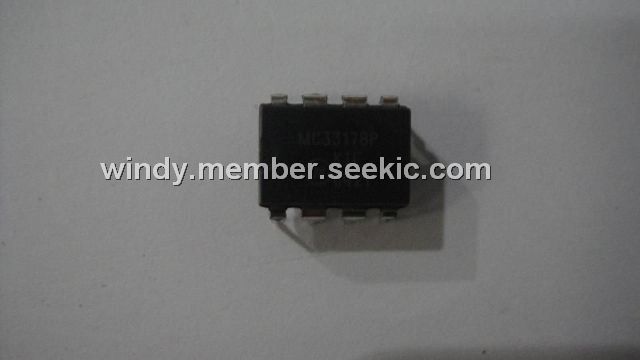

The MC33178P is a high quality monolithic amplifier employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This device incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input offset voltage, noise and distortion. In addition, the MC33178P amplifier provides high output current drive capability while consuming only 420 uA of drain current per amplifier.
Parametrics
MC33178P absolute maximum ratings: (1)Supply Voltage (VCC to VEE), VS: +36 V; (2)Output Short Circuit Duration, tSC: Indefinite sec; (3)Maximum Junction Temperature, TJ:+150 ℃; (4)Storage Temperature Range, Tstg: -60 to +150 ℃; (5)Operating Temperature Range, TA: -40 to +85 ℃.
Features
MC33178P features: (1)600 Ω Output Drive Capability; (2)Large Output Voltage Swing; (3)Low Offset Voltage: 0.15 mV (Mean); (4)Low T.C. of Input Offset Voltage: 2.0 uV/℃; (5)Low Total Harmonic Distortion: 0.0024% (@ 1.0 kHz w/600 Ω Load); (6)High Gain Bandwidth: 5.0 MHz; (7)High Slew Rate: 2.0 V/us; (8)Dual Supply Operation: ±2.0 V to ±18 V; (9)ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Performance; (10)Pb-Free Packages are Available.

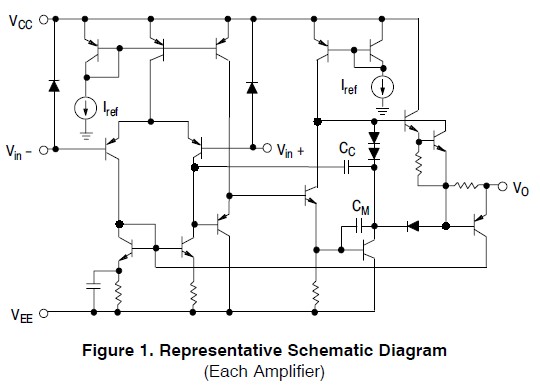

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33178P |
ON Semiconductor |
Operational Amplifiers - Op Amps 2-18V Dual Low Power |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33178PG |
ON Semiconductor |
Operational Amplifiers - Op Amps 2-18V Dual Low Power Industrial Temp |
Data Sheet |
|
|
||||||||||||
